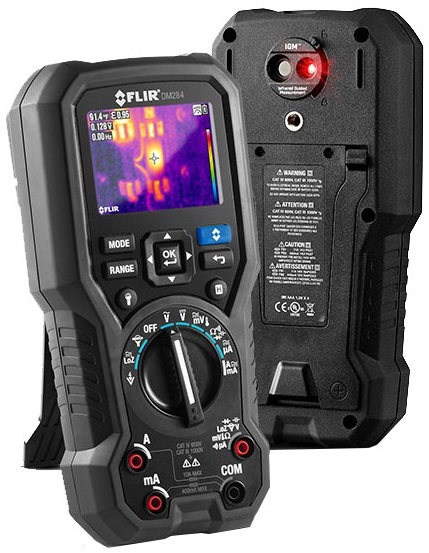

DM284 Digital Multimeter with Thermal Camera |
FLIR DM284 |
FLIR’s DM284 Digital Multimeter with Built-In Infrared Guided Measurement (IGM) Thermal Camera is used for quickly identifying Electrical failures with a 160 x 120 Pixel FLIR Thermal Imager. |
|
T + M ® |
|
Excess Stock to be cleared while stocks last. > Click for More... |
|
Test our Service and Measure with our Instruments. |
|
Watch FLIR DM284 Video below: |
|
Key Features of DM284
· Digital Multimeter with Built-In IGM (Infrared Guided Measurement) Thermal Camera. · 160 x 120 Pixel Thermal Resolution. 19,200 pixels · -10°C to 150°C · Drop Test and IP54 Rating. · Laser Pointer · Palette : Iron, Rainbow and Greyscale, auto Level and Span · Measurements Include: · AC/DC Volts · AC/DC mVolts · VFD · AC/DC · AC / DC LoZ V · AC / DC Amps · AC / DC mAmps · AC / DC μAmps · Resistance · Continuity · Capacitance · Diode · Min/Max/Avg · Flex Clamp Range · Frequency Range |
|
Copyright © 2009—2025 Test and Measurement Instruments C.C. | All rights reserved FLIR DM284 Digital Multimeter with IGM |
|
We would be very pleased to see you at our offices and show room at the address given above. Please use the maps supplied on our Contact Us page, or call us for directions, should you not be using our GPS Co-Ordinates supplied. It will be our pleasure to assist with your unique requirements. We trust that your visit will be an enjoyable one. T+M® For Good Measure. |
|
T + M ® |
|
Specifications. |
|
R11,950.00 Excl VAT |
|
Datasheet (850KB): FLIR |
|
These FLIR commodities may not be sold, transferred or exported to Cuba, Iran, North Korea, Syria or Republic of Sudan, and are also prohibited for export to Belarus, Burma (Myanmar), Ivory Coast (Côte d'Ivoire) and Libya and Zimbabwe. |
|
Items supplied with DM284 in box |
|
Attractive FLIR DM284 Digital Multimeter with IGM with all the features for Electrical Measurements. |
|
Brand Names |
|
All brands, trade names, trade marks, and logos are the property of their respective owners. |
|
Ph: +27 (011) 683 4365 / 6 E-mail: sales@instrumentsgroup.co.za
Physical Address: 3 Angelica Ave, Glenvista, Johannesburg, 2091 SOUTH AFRICA
Postal Address: As Above. |
|
This Month’s Special |
|
Click Ex-Series for Spec. Also: Thermal Imagers |
|
Image Resolution |
19,200 pixels (160 x 120) |
|
|
Sensitivity |
≤ 150 mK |
|
|
Emissivity |
4 Presets with Custom Adjustment |
|
|
Accuracy |
3°C or 3.5% |
|
|
Range |
14°F to 302°F (-10°C to 150°C) |
|
|
FOV (w x h) |
46° x 35° |
|
|
Laser Pointer |
Yes |
|
|
Focus |
Fixed |
|
|
Palette |
Iron, Rainbow, Greyscale |
|
|
Level & Span |
Auto |
|
|
Measurements |
Range |
Accuracy |
|
AC / DC Volts |
1000V |
1% / 0.09% |
|
AC / DC mVolt |
600.0mV |
1% / 0.5% |
|
VFD |
1000V |
±1.0% |
|
AC / DC LoZ V |
1000V |
±1.5% |
|
AC / DC Amps |
10.00A |
±1.5% |
|
AC / DC mAmps |
400.0mA |
±1.5% |
|
AC / DC µAmps |
4,000µA |
±1.0% |
|
Resistance |
50 MΩ |
0.9% |
|
Continuity |
Yes |
Yes |
|
Capacitance |
10.00mF |
1.9% |
|
Diode |
Yes |
Yes |
|
Min/Max/Avg |
Yes |
Yes |
|
Flex Clamp Range |
3000A AC (Optional TA72/74) |
± 3.0% + 5 digits |
|
Frequency Range |
99.99kHz |
0.1% |
|
Thermocouple |
Type K -40°F to 752°F (-40°C to 400°C) |
±1.0% + 5.4°F (DMM) |
|
General Meter |
|
|
|
Drop Test |
3m |
|
|
IP rating |
IP54 |
|
|
Worklights |
Yes |
|
|
Display Size |
2.8" |
|
|
Battery Life Minimum (all modes on) |
3 hrs Alkaline, 12 hrs optional rechargeable battery (TA04-KIT) |
|
|
Warranty |
10 year |
|
|
Auto Power Off |
Yes |
|
|
Safety |
CAT III 1000 V, CAT IV 600 V |
|
|
Size (H x W x L) |
200 x 95 x 49mm; Weight: 537g |
|
