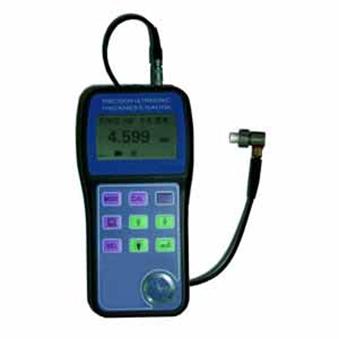

TT700 Thickness Tester |
Thickness Tester |
|
Features: |
|
Technical Specification: |
|
· Especially suitable for testing the thin materials · I-E testing mode and E-E testing mode · Sound velocity testing and single point calibration · Sound alarm and differential mode are available · Chinese/English, mm/inch are selectable · Data store, view and delete · Result can be print out and transfer to PC |
|
Standard Accessories Supplied with Instrument:
· Main unit 1 · Transducer 15P: 6 1 · Screw driver 1 · Protection sheath for main unit 1 · Connecting protection sheath 1 · Cover protection sheath 1 · AA battery 2 · Couplant 1 · Instruction manual 1 · Warranty card 1 · TIME certificate 1 · Packing list 1
· Communication cable · Software · Standard test block · 20MHz transducer · TA230 printer |
|
We would be very pleased to see you at our offices and show room at the address given above. Please use the maps supplied on our Contact Us page, or call us for directions, should you not be using our GPS Co-Ordinates supplied. It will be our pleasure to assist with your unique requirements. We trust that your visit will be an enjoyable one. T+M® For Good Measure. |
|
Please Note: This is not our complete range, so please contact us for further information on any product that you require, which is not seen on our site. You can call us on +27 (011) 683 4365 or email us by clicking here. |
|
Copyright © 2009—2019 Test and Measurement Instruments C.C. | All rights reserved TT700 Ultrasonic Thickness Tester |
|
T + M ® |
|
Excess Stock to be cleared while stocks last. > Click for More... |
|
T + M ® |
|
Test our Service and Measure with our Instruments. |
|
This Month’s Special |
|
Thermography—Thermal Imager— Infrared Camera. FLIR E5 (120 x 90 Pixels)
R 21,150.00 + VAT while stocks last.
FREE Thermography Introductory Course Included with Lunch.
One Day Course. |
|
Click Ex-Series for Spec. Also: Thermal Imagers |
|
Ph: +27 (011) 683 4365 Fax: +27 (011) 683 4461 E-mail: t.m.i@iafrica.com
Physical Address: 3 Angelica Ave, Glenvista, Johannesburg, 2091 SOUTH AFRICA
Postal Address: P.O. Box 1416, Southdale, Johannesburg, 2135, SOUTH AFRICA |
|
Brand Names |
|
All brands, trade names, trade marks, and logos are the property of their respective owners. |
|
Measuring range |
0.15~20mm |
|
Display resolution |
0.001 mm and 0.01 mm selectable |
|
Sound velocity range |
1000m/s~9999m/s |
|
Operating temperature |
0~40 deg C |
|
Dimension |
152mm x 74mm x 35mm |
|
Weight |
220g |
|
Power supply |
2pcs.AA batteries |
