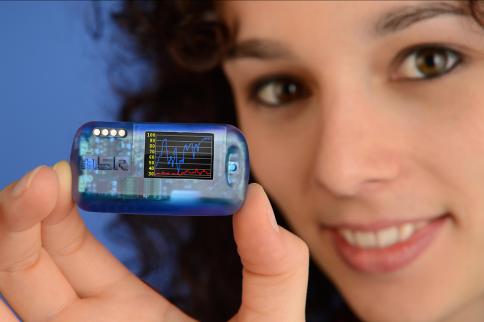

MSR145WD Wireless LED Cloud Data Logger

MSR145WD Wireless

  MSR145WD Wireless LED Cloud Data Logger.

MSR 145 datalogger

T + M ®

TMI divide lineTMI divide lineTMI divide lineTMI divide lineT+M InstrumentTest and Measurement Instruments C.C.T.M.I. T+M
TMI InstrumentsSA Flag on TMI site

Clearance Sale:

Excess Stock to be cleared while stocks last. >   Click for More...

Test our Service and

Measure with our

Instruments.

Datasheet  (249KB)

           Features.

For measurement mobility:

MSR145WD with Bluetooth Low Energy (BLE).

The wireless version of the MSR145 mini data logger facilitates easy and precise remote monitoring by means of the Bluetooth Low Energy short-range radio technology. You can use the smartphone app to recall the current and last recorded values at any time, without delay. A smartphone, a PC or our BLE receiver box can transmit the measured data to MSR SmartCloud, if required. The updated features in June 2015 allow for in addition, the user can now also select from several variants in order to determine the time of the BLE communication between the data logger and the device.



Updated Features in June 2015 are as follows:



1.      Optimised energy efficiency through the time-controlled connection of the MSR145WD data logger with the receiver (smartphone, tablet)

a.      Start and stop recording via MSR App.

b.      Select the time frame for the BLE connection individually:

c.      BLE connection 1 x every hour, on the hour, 5 minutes long:

d.      Time-controlled connection “off”.

2.          Password function.

a)      Define the password in the MSR Setup.

b)      Enter the password in the MSR Data Logger app.

3. Time setting of the MSR SmartCloud to Universal Time Coordinated (UTC)

4. Now up to 5 pressure sensors can also be used.





Fast readings of measured values:

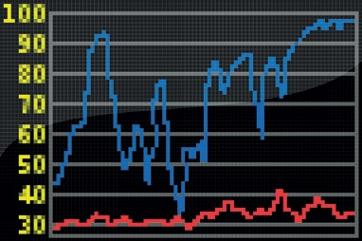

MSR145WD with brilliant OLED colour display

You can now equip the MSR145 data logger with a colour OLED display for a compact representation of data and graphic charts. The high screen resolution facilitates easy reading of measured values, even in total darkness and from virtually any viewing angle. The display is switched on and off manually; the desired display data can be configured in the MSR PC software program “Set up”.



New: The web-based MSR SmartCloud service.

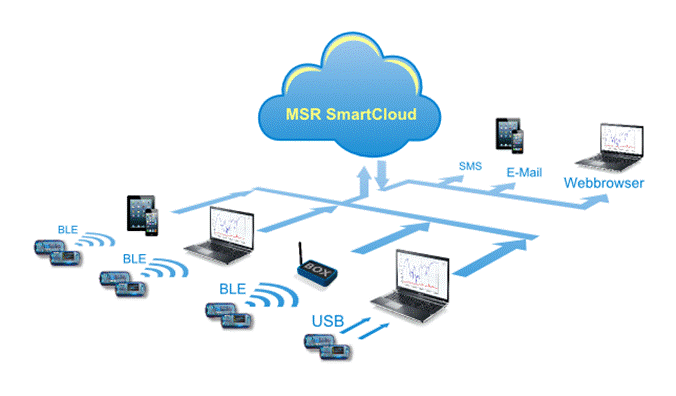

MSR SmartCloud facilitates the storage of your measured data on a server via the Internet, allowing you to view, print or download the measured values of your data loggers to your PC for a detailed analysis, wherever you are. If you work in a team, you can grant fellow employees access to your measured data with a personal MSR SmartCloud login, thus facilitating efficient and easy co-operation.

MSR SmartCloud can notify you of incoming alarms via text messages and e-mail. Depending on the data logger type and existing infrastructure, measured data can enter the MSR SmartCloud in different ways: wireless using BLE via a smartphone, PC or a separate gateway; or using a USB cable via a PC.

MSR145 WirelessMSR SmartCloud facilitates the storage of your measured data on a server via the Internet.MSR145 Wireless Data Logger
